Modular Steel Pipe Rack System Fire Resistant ASTM A572

20 T
MOQ
USD1000/T-USD1200/T
Price
Modular Steel Pipe Rack System Fire Resistant ASTM A572
Features Gallery Product Description Request A Quote
Features
Specifications
Weather Resistance: Yes
Cost: Affordable
Customization Options: Available
Raw Steel Material: Q235B, Q355B, ASTM A36, ASTM572
Application: Steel Structural Building
Color: Optional
Production Capacity: 12500T Per Month
Standard: AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance: Yes
Design: Customized
Durability: High
Surface Treatment: Painting Or Hot-dip Galvanized
Columns And Beam: H Section Column&Beam
Size: Customized
Customizable: Yes
Highlight:

Steel Pipe Rack System

,

ASTM A572 Steel Pipe Rack

,

Fire Resistant Steel Pipe Rack

Basic Infomation
Brand Name: SUNWAY
Payment & Shipping Terms
Packaging Details: Steel Pallet
Delivery Time: 30-40 days
Payment Terms: L/C,T/T
Supply Ability: 100000T/Year
Product Description

Modular Steel Pipe Rack System

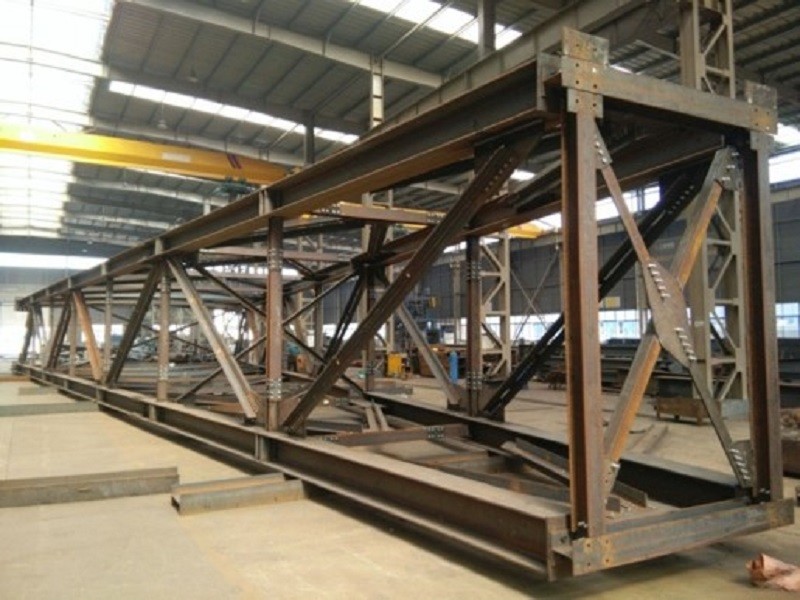

Modular Steel Pipe Rack System Fire Resistant ASTM A572 0

Core Features
✓ ‌Structural Capacity‌:

  • 3-5 tiers, 6m column grids
  • 800kg/m dead load + ASME B31.3 thermal compensation
    ✓ ‌Material Tech‌:
    • ASTM A572 Gr.50 steel
    • 3mm HDPE cladding for acid zones
    • 2hr fire-rated intumescent coating

Smart Build
▸ ‌Modular Design‌:

  • 24m pre-assembled units with slip-fit connections
  • Guided cantilever arms (300mm thermal movement)
    ▸ ‌Safety Embedded‌:
    • Blast-resistant bracing (5psi overpressure)
    • Class I Div 2 cable trays & OSHA guardrails

Performance
• 150% load tested • <0.02mm/yr corrosion rate
• L/300 deflection limit • 30dB EMI shielding

Certification
API 560 / ASME B31.3 / EN 1090-2 EXC4


Technical Snapshot
① ‌Build Time‌: 16 weeks vs 40w concrete
② ‌Cost‌: $380/m² (25-year lifecycle)
③ ‌Maintenance‌: 5-year coating warranty

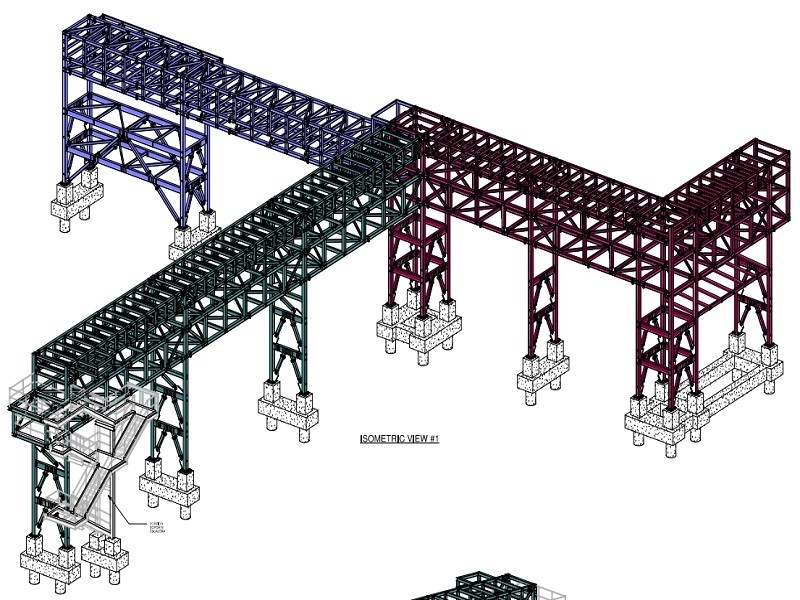

Modular Steel Pipe Rack System Fire Resistant ASTM A572 1

Product name     Steel Pipe Rack
Material     ASTM; GB;
Surface     Painted

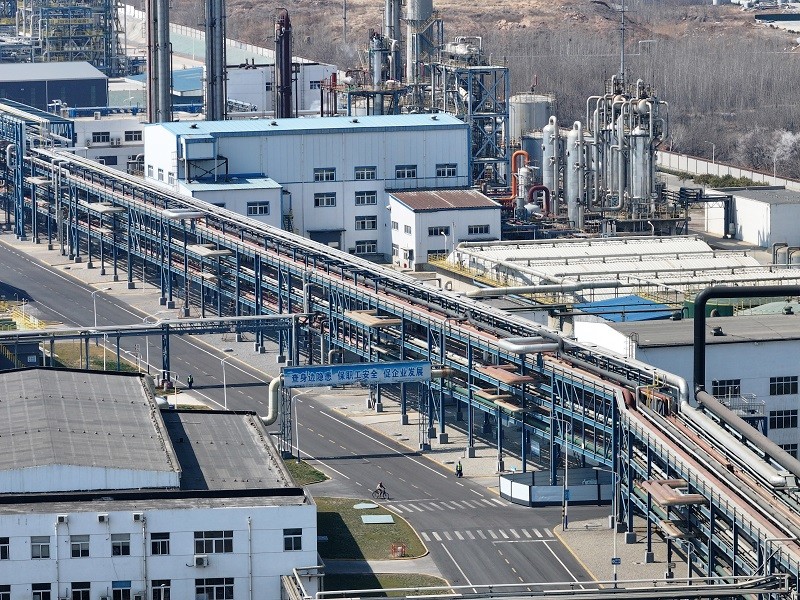

Modular Steel Pipe Rack System Fire Resistant ASTM A572 2

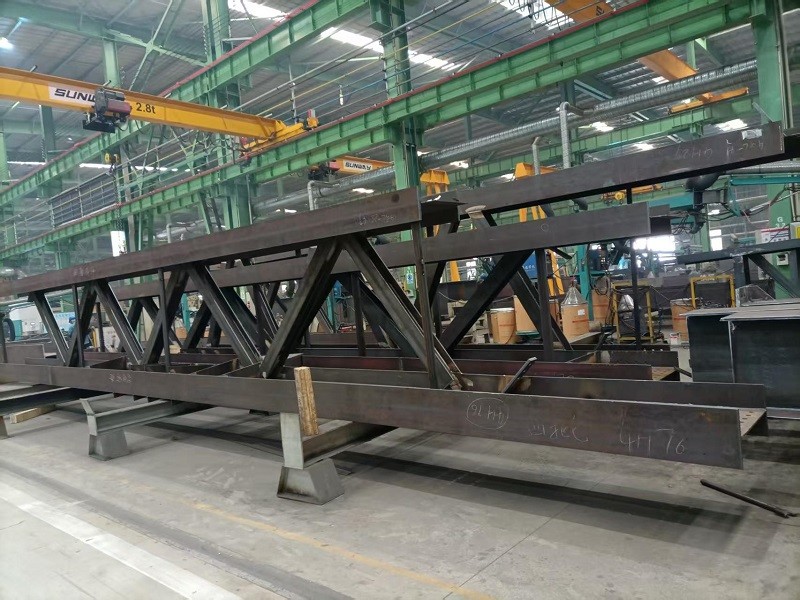

Modular Steel Pipe Rack System Fire Resistant ASTM A572 3

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume



Modular Steel Pipe Rack System Fire Resistant ASTM A572 4

Modular Steel Pipe Rack System Fire Resistant ASTM A572 5

Modular Steel Pipe Rack System Fire Resistant ASTM A572 6
