Production Line

1.Smart H beam welding line

Features of Smart horizontal assembling machine:

1). Fully digital control, which can achieve automatic transfering of workpiece information and remote control functions;

2). Automatically adjust the positions of each mechanism based on the input or downloaded  beam specifications;

3). Fully automatic 4 torches simultaneous spot welding, increase times of production efficiency;

4). It has the functions of energy statistics, consumables statistics, and processing and production data statistics, and is saved on the production line server. The centralized control center can access the server to obtain data;

5). OPTIONAL: It can be equipped with a dust filter and a video monitoring system, which can remotely monitor diagnostic equipment

 Shandong Sunway Steel Building Co., Ltd. factory production line 0

Shandong Sunway Steel Building Co., Ltd. factory production line 1


2. Box girder welding line

Total Length:172m

Equipped with:

2 sets of box girder diaphragm erectors

2 sets of cantilever CO2 backing welders

2 sets of cantilever CO2 filling welders

2 sets of cantilever fuse electroslag welders

2 sets of cantilever twin wire submerged arc welding machines

1 set of CNC end milling machine,

7 groups of 180 ° mobile hydraulic overturning racks

several groups of conveying rollers and other equipment

Benefits: to achieve semi-automatic batch production of box girder, improved production efficiency and reduced labor work.

Shandong Sunway Steel Building Co., Ltd. factory production line 2

Shandong Sunway Steel Building Co., Ltd. factory production line 3


3. PKG Robotic steel cutting line

Adopt plasma+flame cutting method, combine a variety of processing processes, combine the zip saw, three -dimensional drilling, and lock port to a special cutting production line of a robot. The fast cutting of the type realizes the automated processing of the type of material. The use of the equipment can greatly improve the utilization rate of venue, reduce product transfer time, and comprehensively improve processing production efficiency.

Features: H Beam,Channel processing

                 Optional:RHS steel

                 Pure plasma cutting, fast speed

                 New marking function to achieve multi sided plasma marking

                 Optional: laser cutting the web holes

Shandong Sunway Steel Building Co., Ltd. factory production line 4


4. Welding Equipments

High-end welding robot work islands, welding robotic arms, gantry submerged arc automatic welding and other welding equipment.

Adopting welding processes such as submerged arc welding, gas shielded semi-automatic welding, and argon arc welding.

Shandong Sunway Steel Building Co., Ltd. factory production line 5


Shandong Sunway Steel Building Co., Ltd. factory production line 6

Shandong Sunway Steel Building Co., Ltd. factory production line 7

Shandong Sunway Steel Building Co., Ltd. factory production line 8

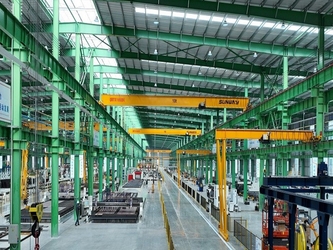

  • Shandong Sunway Steel Building Co., Ltd. factory production line

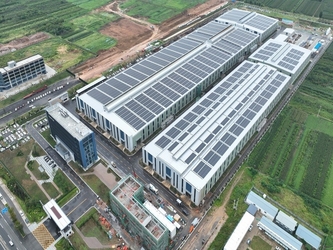

  • Shandong Sunway Steel Building Co., Ltd. factory production line

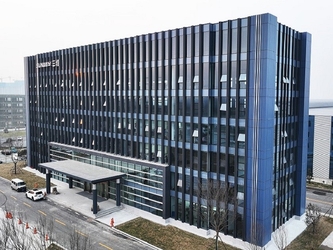

  • Shandong Sunway Steel Building Co., Ltd. factory production line
