Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction

20 TONS
MOQ
USD 1100-1150 PER TON
Price
Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q235B, Q355B,A36,S275
Standard: GB,EN1090,AISC,JIS,CWB
Surface Treatment: 1.Painting 2.HDG
Application: Thermal Power Plant ,Chemical Industry
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Package: GP Containers (40 Feet),Break Bulk
Highlight:

Cable Duct Bank Pipe Rack Structure

,

Pipe Rack Structure Fabrication

,

Steel Pipe Rack Fabrication

Basic Infomation
Place of Origin: CHINA
Brand Name: SUNWAY
Certification: CE,AISC,ISO,JIS,CWB
Model Number: Steel Pipe Rack
Payment & Shipping Terms
Packaging Details: IRON FRAME 40GP CONTAINER
Delivery Time: 30DAYS
Payment Terms: T/T
Supply Ability: 10000 ton per month
Product Description

Steel Pipe Rack Structure Fabrication Cable Duct Bank Construction

 Contact us for steel solutions you can trust!

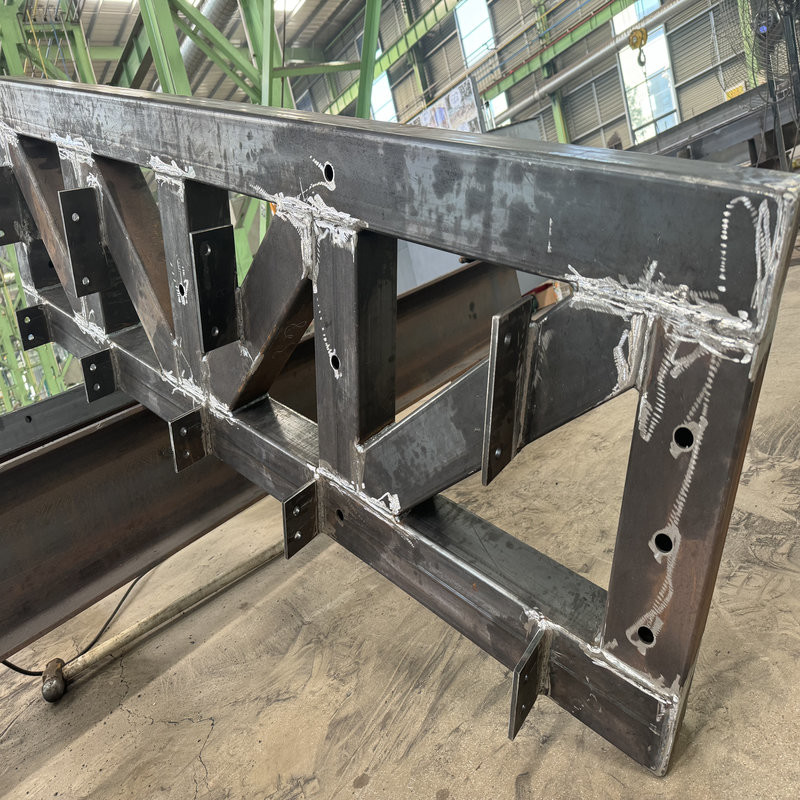

Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 0

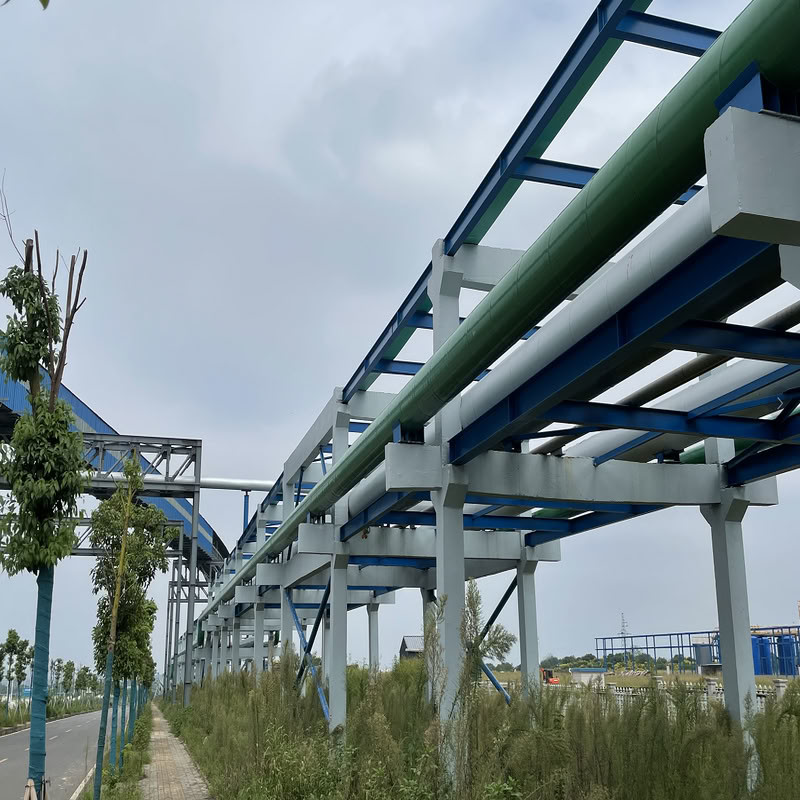

Steel structure pipe galleries serve as the primary areas for the concentrated installation of pipelines in large - scale industrial setups. Comprising sturdy steel structure columns, robust beams, and well - engineered trusses, they come in diverse configurations. By type, they can be single - layer for simpler setups or multi - layer for more complex arrangements, and are classified as either accessible for maintenance needs or inaccessible based on specific design requirements.

We specialize in custom steel fabrication

Cutting(laser cutting, plasma cutting)

Forming(bending, rolling)

Joining(welding, riveting)

Finshing (painting, galvanizing)

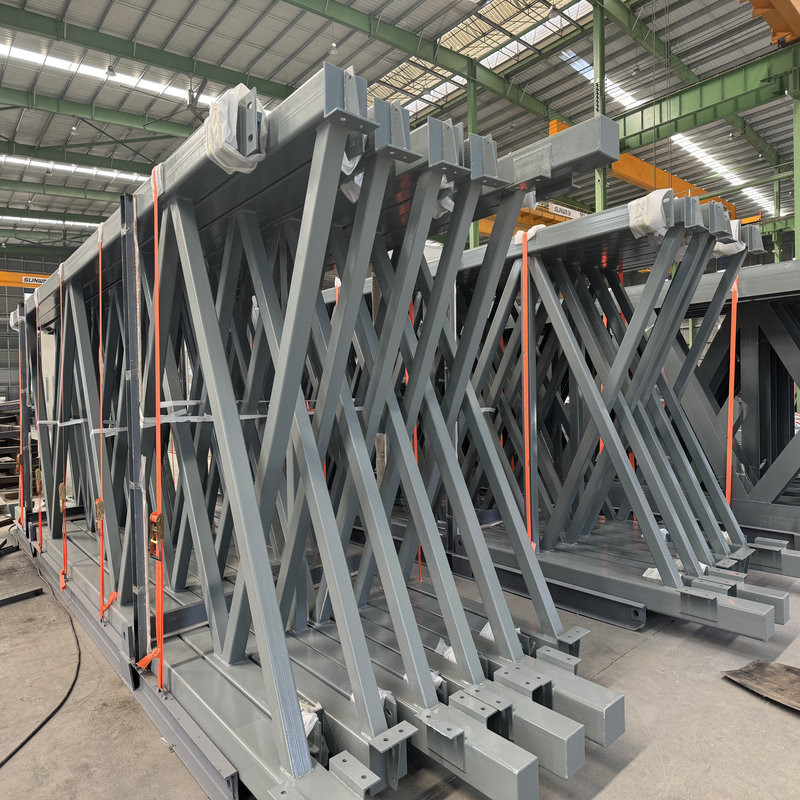

Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 1
Products Steel Pipe Rack Structure
Main Material Q235B(ASTM A36,S235JR), Q355B
Drawing Design AUTOCAD /SOLIDWORKS/TEKLA
Surface Treatment Painting, HDG
Process-Cutting Laser cutting, plasma cutting, flame cutting for intricate shapes
Forming Rolling, and bending to meet complex structural designs
Welding MIG, TIG, Submerged arc
Machining Drilling, milling for precise fittings

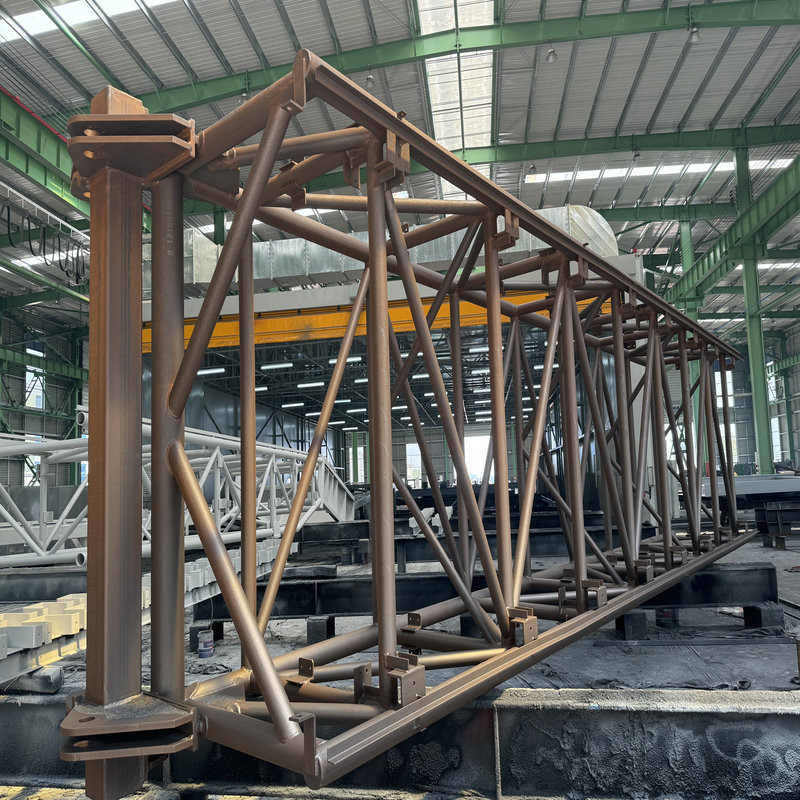

Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 2

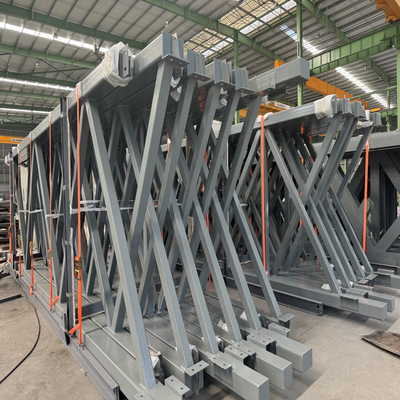

Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 3



Competitive advantage

Besides the Automatic Intelligent Production Line for H beam & Box Column, Sunway  is well equipped with PKG Synthetic cutting line, Laser Cutting Machine, Robot Welding Machine, Sawing Machine, Drilling Machine, Hydraulic Press Machine, Punching Machine, realize the scale and high-efficient production of factory intelligent manufacturing.

A customized MES system under developing, which combines TEKLA, Solidworks, and normal MES software to achieve centralized dynamic control of the entire process of order design, production, and erection,achieving full traceability of product component cycles.

SUNWAY introduce industry-leading 3D design software, which has powerful parametric design function and visual effect display. Through these software, designers can quickly build complex steel structure models, simulate structural performance under different working conditions, identify and solve potential problems in advance.

Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 4

Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 5





Steel Pipe Rack Structure Fabrication For Cable Duct Bank Construction 6
