Custom Pipe Rack Structure Steel Platforms Structural Frame Construction

20 TONS
MOQ
USD 1100-1150 PER TON
Price
Custom Pipe Rack Structure Steel Platforms Structural Frame Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q235B, Q355B,A36,S275
Standard: GB,EN1090,AISC,JIS,CWB
Surface Treatment: 1.Painting 2.HDG
Application: Petrochemical Industry,Chemical Industry
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Package: GP Containers (40 Feet),Break Bulk
Highlight:

Steel Structural Frame Construction

,

Custom Pipe Rack Structure

,

Pipe Rack Structure Steel Platforms

Basic Infomation
Place of Origin: CHINA
Brand Name: SUNWAY
Certification: CE,AISC,ISO,JIS,CWB
Model Number: Pipe Rack
Payment & Shipping Terms
Packaging Details: IRON FRAME 40GP CONTAINER
Delivery Time: 30DAYS
Payment Terms: T/T
Supply Ability: 10000 ton per month
Product Description

Structural Frame Construction Custom Pipe Rack Structure Steel Platforms

Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 0

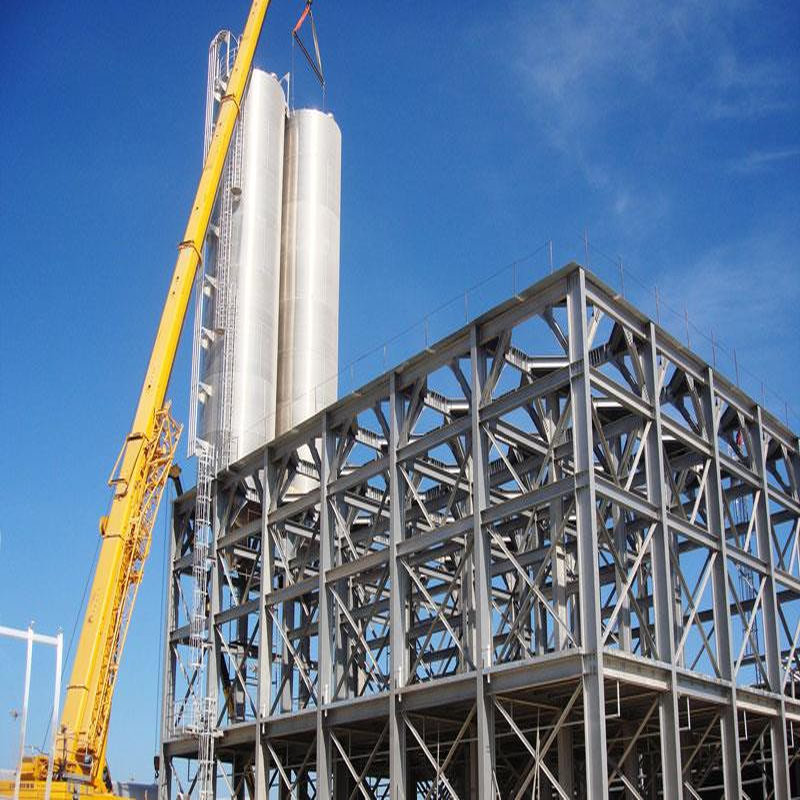

In the petrochemical sector, we are engaged in the manufacturing of modular steel structures. Our main products include offshore terminal modules, conveyor modules, air cooler modules, tower modules, pipe rack modules, and so on. Steel - framed structures are employed to support and construct diverse pipelines and specialized equipment facilities. The multi - story steel - structure platforms within the chemical plant play a facilitating role in the installation and operation of equipment.We not only offer all - inclusive processing services for engineering machinery equipment but also provide tailor - made solutions. These customized solutions are designed to address the unique requirements of each project, thereby ensuring the smooth and successful progression of projects.

Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 1
Products  Pipe Rack
Main Material Q235B(ASTM A36,S235JR), Q355B
Drawing Design AUTOCAD /SOLIDWORKS/TEKLA
Surface Treatment Painting, HDG
Process-Cutting Laser cutting, plasma cutting, flame cutting for intricate shapes
Forming Rolling, and bending to meet complex structural designs
Welding MIG, TIG, Submerged arc
Machining Drilling, milling for precise fittings

Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 2



Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 3



Competitive advantage

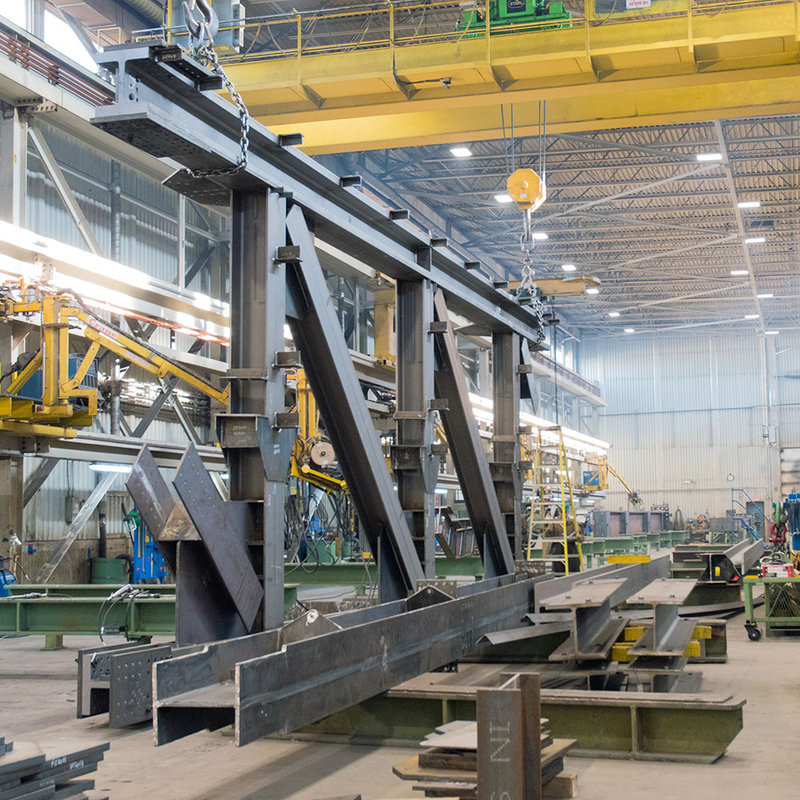

Besides the Automatic Intelligent Production Line for H beam & Box Column, Sunway  is well equipped with PKG Synthetic cutting line, Laser Cutting Machine, Robot Welding Machine, Sawing Machine, Drilling Machine, Hydraulic Press Machine, Punching Machine, realize the scale and high-efficient production of factory intelligent manufacturing.

A customized MES system under developing, which combines TEKLA, Solidworks, and normal MES software to achieve centralized dynamic control of the entire process of order design, production, and erection,achieving full traceability of product component cycles.

SUNWAY introduce industry-leading 3D design software, which has powerful parametric design function and visual effect display. Through these software, designers can quickly build complex steel structure models, simulate structural performance under different working conditions, identify and solve potential problems in advance.

Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 4

Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 5





Custom Pipe Rack Structure Steel Platforms Structural Frame Construction 6
