High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems

20 T
MOQ
USD1000/T-USD1200/T
Price
High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Weather Resistance: Yes
Cost: Affordable
Customization Options: Available
Raw Steel Material: Q235B, Q355B, ASTM A36, ASTM572
Application: Steel Structural Building
Color: Optional
Production Capacity: 12500T Per Month
Standard: AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance: Yes
Design: Customized
Durability: High
Surface Treatment: Painting Or Hot-dip Galvanized
Columns And Beam: H Section Column&Beam
Size: Customized
Customizable: Yes
Highlight:

Thermal Solar Steel Structure

,

Precision Engineered Solar Steel Structure

,

CSP Systems Solar Steel Structure

Basic Infomation
Brand Name: SUNWAY
Payment & Shipping Terms
Packaging Details: Steel Pallet
Delivery Time: 30-40 days
Payment Terms: L/C,T/T
Supply Ability: 100000T/Year
Product Description

High-Temperature Solar Thermal Supports – Precision Engineered for CSP Systems

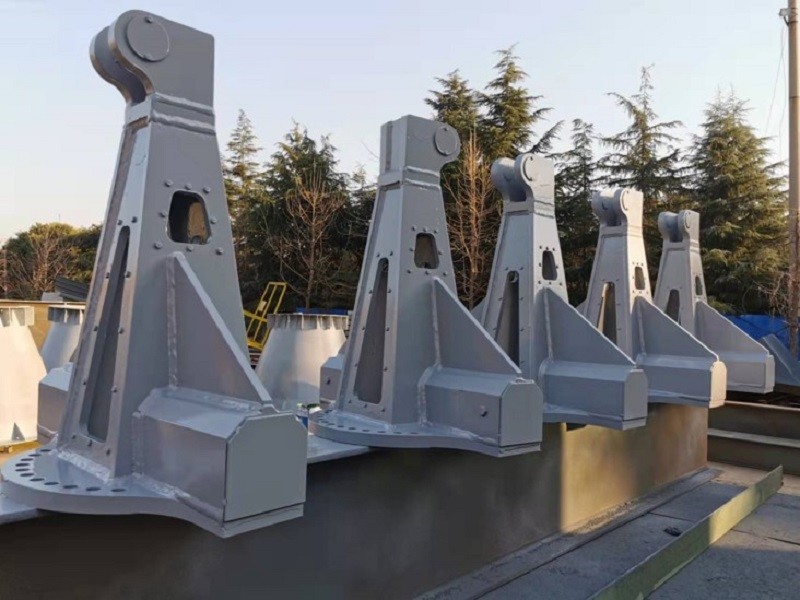

High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 0
Heavy-duty galvanized steel structures engineered for parabolic troughs, heliostats, and receiver towers in utility-scale solar thermal plants.

Core Specifications

  • Material‌: Zinc-aluminum-magnesium coated steel (S420GD+ZM, 1500h salt spray resistance)
  • Tracking Accuracy‌: ≤0.15° angular deviation (ISO 6286-3)
  • Load Capacity‌:
    • Wind: 75m/s (IEC 61400-2 Class S)
    • Mirror Weight: ≤45kg/㎡ (EN 1991-1-4)
  • Thermal Stability‌: -30°C to +200°C operational range (ASME B31.3)

Critical Design Features

  • Mirror Precision‌: Laser-aligned mounting surfaces (Ra≤3.2μm)
  • Heat Dissipation‌: Ventilated structural design reduces thermal warping
  • Mass Deployment‌: Pre-assembled torque-tube modules (2MW/day installation rate)
  • Desert Adaptation‌: Sand-erosion resistant coating (ISO 12944 C5-M)

Smart Tracking Integration

  • Embedded GPS alignment receivers (±2mm positioning)
  • Heat-resistant azimuth drives (IP68 rated)
  • Real-time deflection monitoring via strain gauges

Certifications

  • SolarPACES Qualified Component
  • AS 1170.2 wind engineering compliance
  • 30-year anti-corrosion warranty

Typical Applications

  • 100MW+ trough CSP plants with thermal storage
  • Molten salt tower heliostat fields
  • Industrial process heat systems (150-400°C)

Engineered to focus solar energy with millimetric precision.

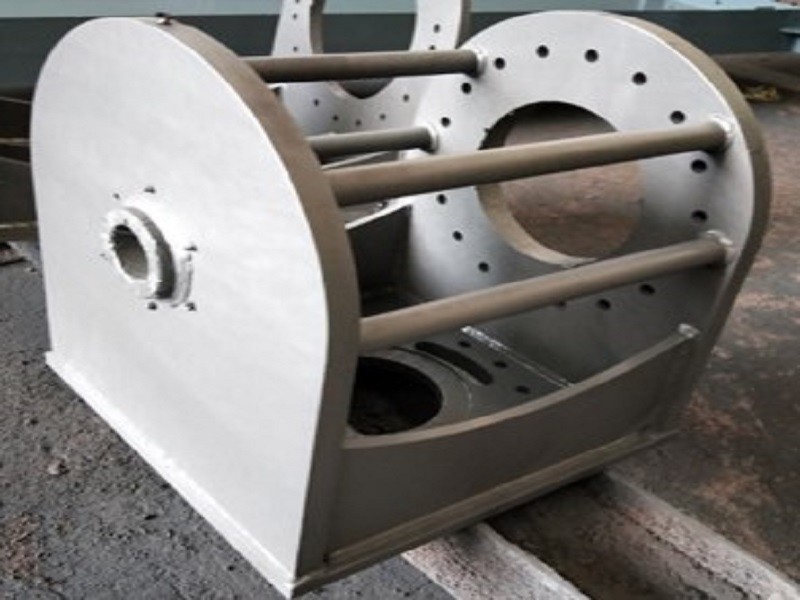

High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 1

Product name  High-Temperature Solar Thermal Supports
Material     ASTM; EN; GB;
Surface     Painted; HDG

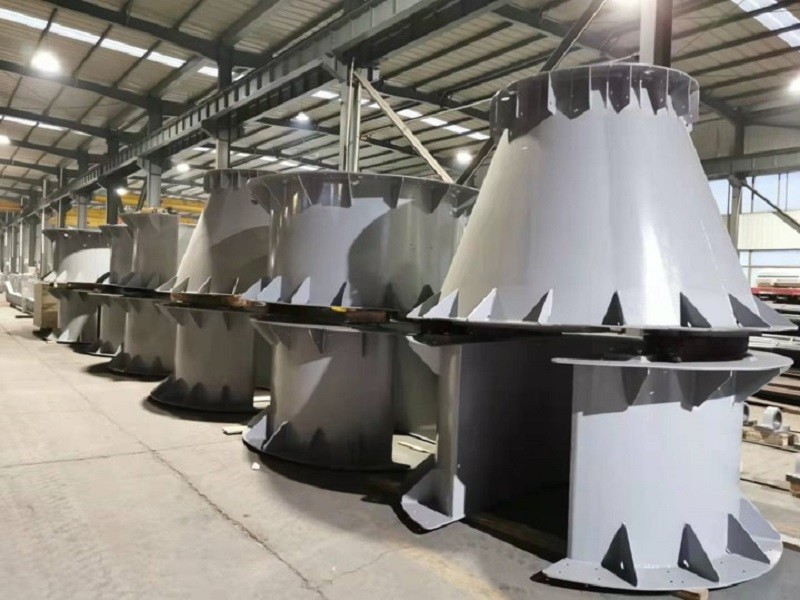

High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 2

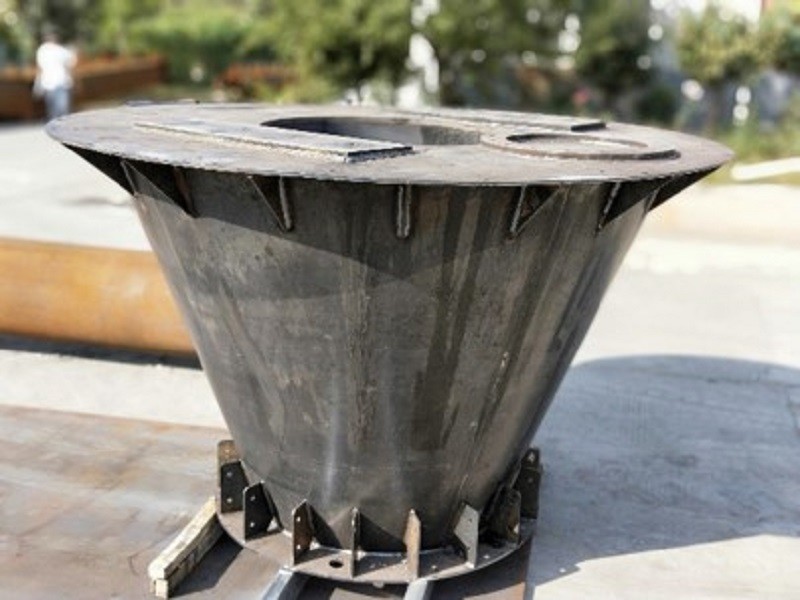

High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 3

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume



High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 4

High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 5

High Temperature Thermal Solar Steel Structure Precision Engineered For CSP Systems 6
