Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing

20 TONS
MOQ
USD 1050-1200 TON
Price
Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Process: Bending, SHEET METAL Fabrication, Cutting, Drilling, Zinc
Standard: GB, EN1900, AISC, JIS, CWB
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Forming: Rolling, And Bending To Meet Complex Structural Designs
Surface Treatment: Anodized, PVDF, Hot Dip Galvanised, Plating
Type: Machining Services, Sheet Metal Fabrication, Light Steel Structure Frame, Custom Structural Welding Fabrication
Surface Treatment (Additional): Painting, Galvanized
Process-Cutting: Laser Cutting, Plasma Cutting, Flame Cutting For Intricate Shapes
Highlight:

Heavy Steel Structure Fabrication

,

Bridge Girder Erection Machine Steel Structure

,

Erection Machine Steel Structure Fabrication

Basic Infomation
Place of Origin: CHINA
Brand Name: SUNWAY
Certification: CE,AISC,ISO,JIS,CWB
Model Number: SILOS
Payment & Shipping Terms
Packaging Details: IRON FRAME 40GP CONTAINER
Delivery Time: 30DAYS
Payment Terms: T/T
Supply Ability: 10000 ton per month
Product Description

Bridge Girder Erection Machine Processing Heavy Steel Structure Construction

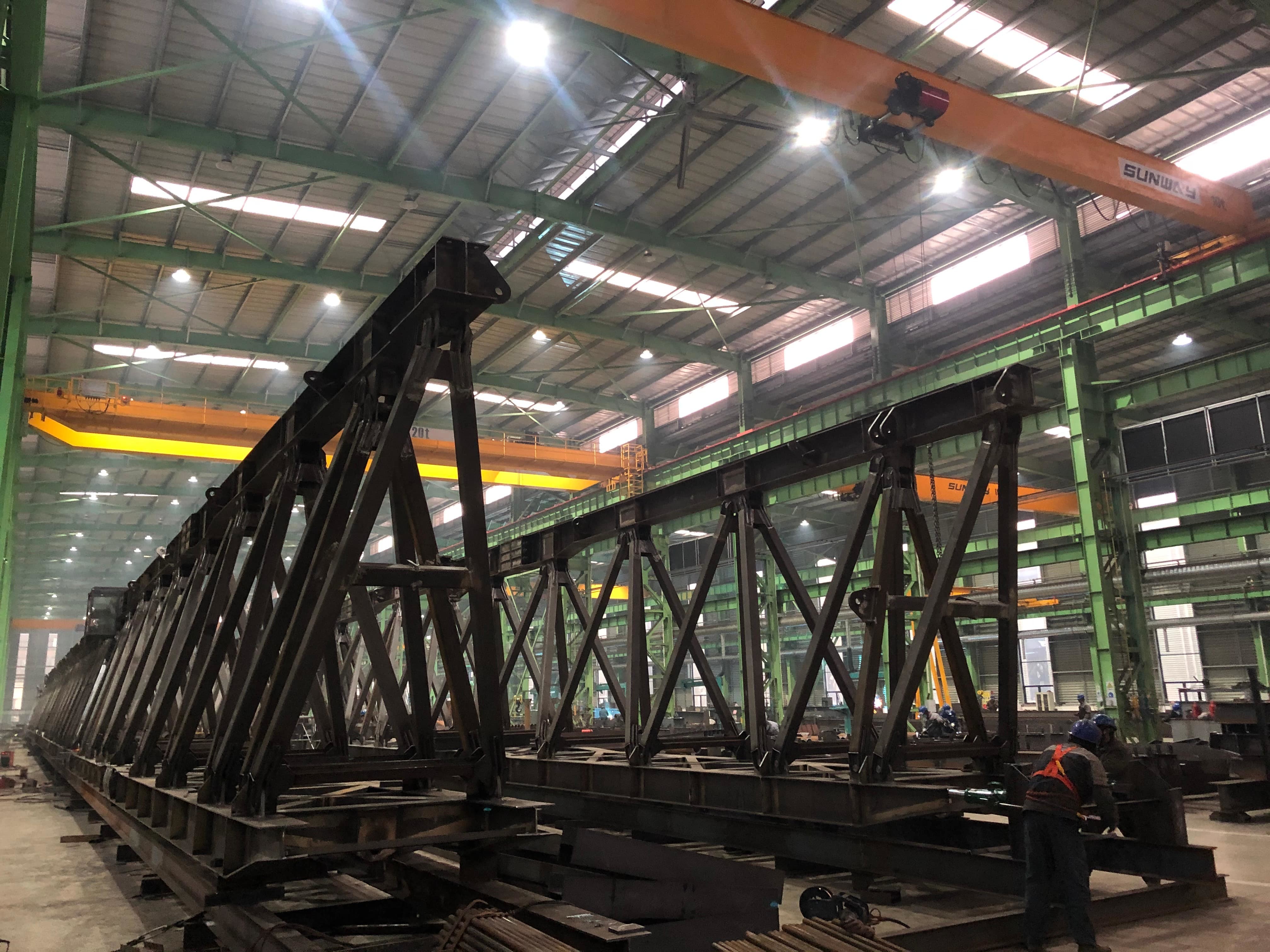

Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 0

We specialize in integrated processing of heavy steel structures for bridge girder erection machinery, providing customized manufacturing services from precision components to complete assembly for large equipment like ship loaders and construction cranes.   Our processes combine laser cutting (±0.5mm accuracy) and plasma cutting (up to 150mm plate thickness), supported by 6000kN 3D CNC press brakes and 100mm plate rolling systems for complex-shaped structural forming.

All load-bearing welds undergo 100% ultrasonic testing (UT) and magnetic particle inspection (MT) per AWS D1.1/D1.5 standards, with laser 3D scanning verifying box girder straightness (≤0.1mm/m).   Surface treatment options include abrasive blasting (Sa2.5 per ISO 8501-1) with epoxy-polyurethane coating or hot-dip galvanizing (≥85μm zinc layer, ISO 1461 compliant), meeting ISO 12944 C5-M corrosion protection requirements.

Utilizing 2-axis machining centers and smart material traceability systems (EN 10204 3.1), we've delivered critical bridge equipment components including 80-ton box girders and high-strength steel joints, achieving 98.6% quality compliance with 30-day average lead time reduction.   Our solutions comply with EN 1090-2 EXC4 standards for heavy steel bridge structures.

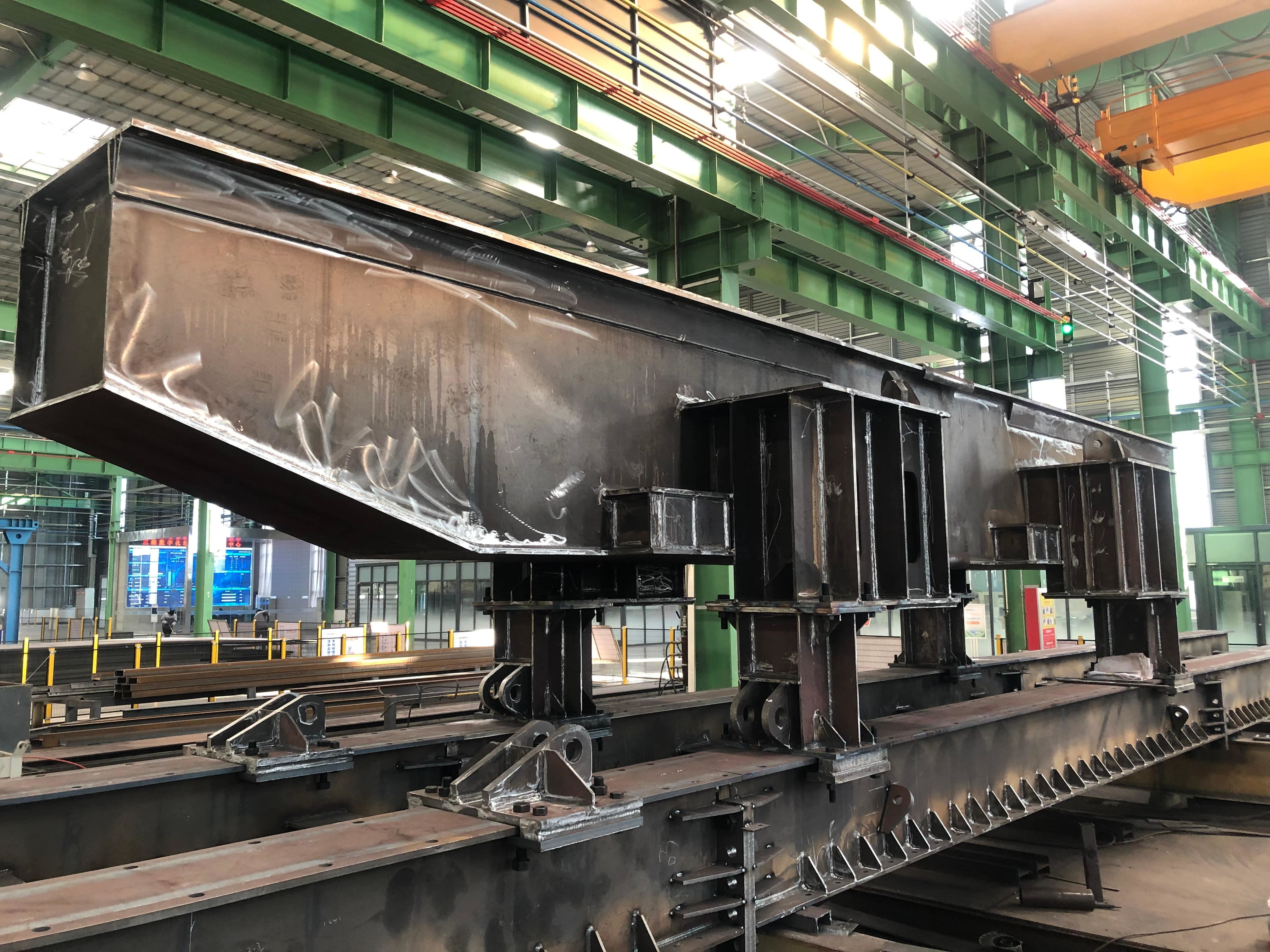

Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 1
Products Engineering Equipment Feeder Processing
Main Material Q235B(ASTM A36,S235JR), Q355B
Drawing Design AUTOCAD /SOLIDWORKS/TEKLA
Surface Treatment Painting, Galvanized
Process-Cutting Laser cutting, plasma cutting, flame cutting for intricate shapes
Forming Rolling, and bending to meet complex structural designs
Welding MIG, TIG, Submerged arc
Machining Drilling, milling for precise fittings

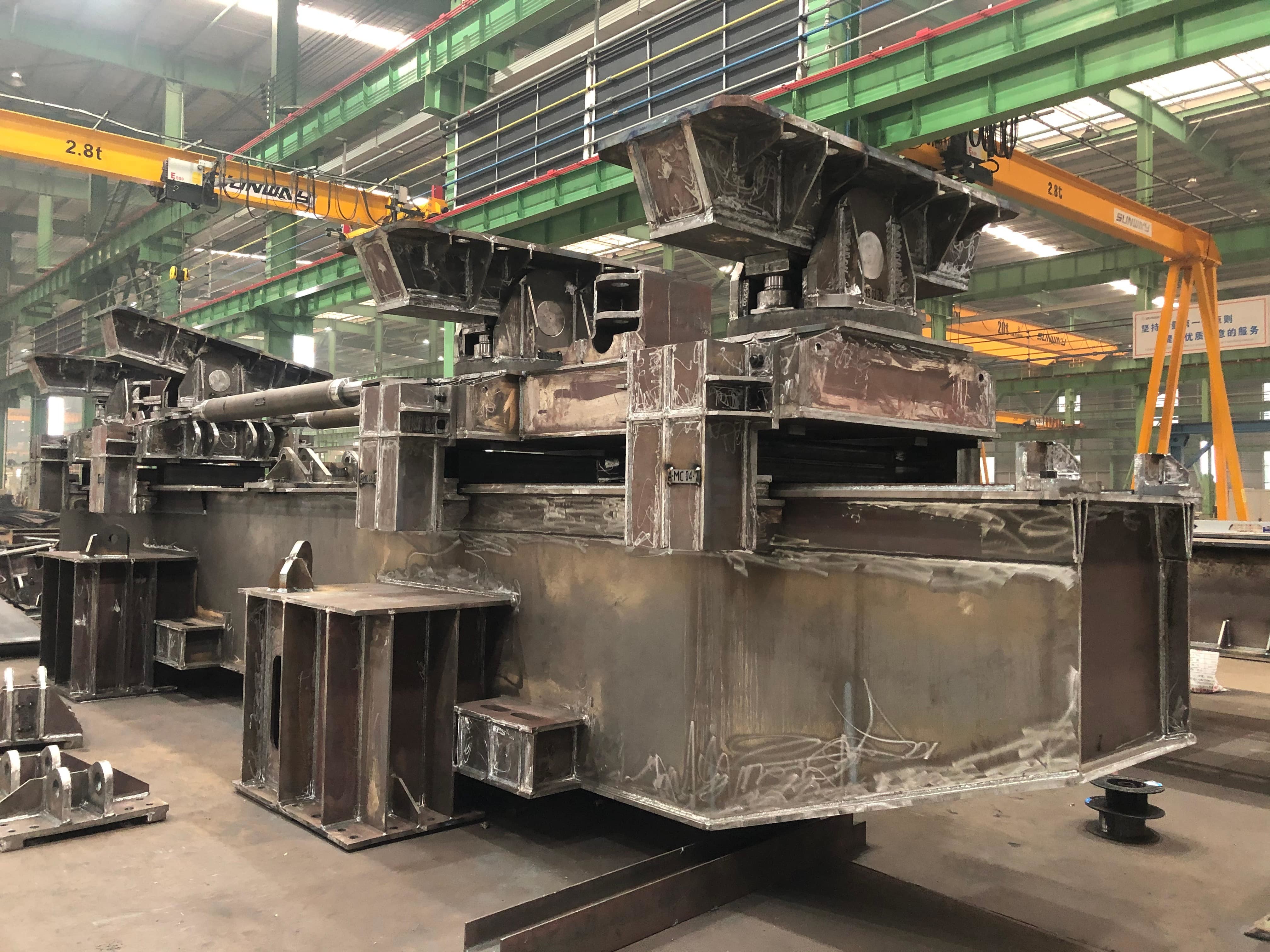

Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 2

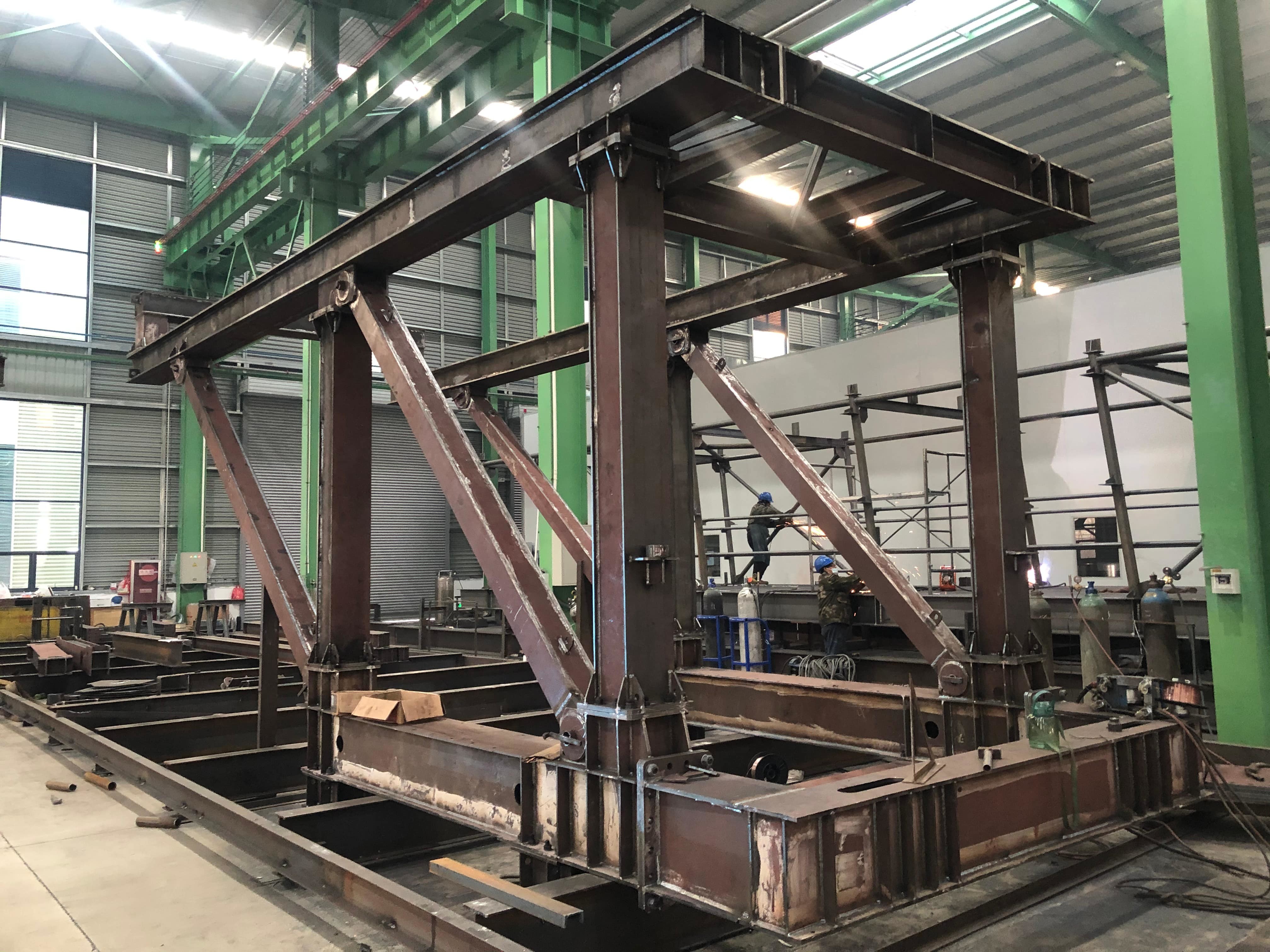

Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 3



Competitive advantage

Besides the Automatic Intelligent Production Line for H beam & Box Column, Sunway  is well equipped with PKG Synthetic cutting line, Laser Cutting Machine, Robot Welding Machine, Sawing Machine, Drilling Machine, Hydraulic Press Machine, Punching Machine, realize the scale and high-efficient production of factory intelligent manufacturing.

A customized MES system under developing, which combines TEKLA, Solidworks, and normal MES software to achieve centralized dynamic control of the entire process of order design, production, and erection,achieving full traceability of product component cycles.

SUNWAY introduce industry-leading 3D design software, which has powerful parametric design function and visual effect display. Through these software, designers can quickly build complex steel structure models, simulate structural performance under different working conditions, identify and solve potential problems in advance.

Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 4

Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 5





Heavy Steel Structure Fabrication for Bridge Girder Erection Machine Processing 6
