Customized Hotel Steel Structural System Weather Resistant

20 T
MOQ
USD1000/T-USD1200/T
Price
Customized Hotel Steel Structural System Weather Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Weather Resistance: Yes
Cost: Affordable
Customization Options: Available
Raw Steel Material: Q235B, Q355B, ASTM A36, ASTM572
Application: Steel Structural Building
Color: Optional
Production Capacity: 12500T Per Month
Standard: AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance: Yes
Design: Customized
Durability: High
Surface Treatment: Painting Or Hot-dip Galvanized
Columns And Beam: H Section Column&Beam
Size: Customized
Customizable: Yes
Highlight:

Hotel Steel Structural System

,

Weather Resistant Steel Structural System

,

Customized Steel Structural System

Basic Infomation
Brand Name: SUNWAY
Payment & Shipping Terms
Packaging Details: Steel Pallet
Delivery Time: 30-40 days
Payment Terms: L/C,T/T
Supply Ability: 100000T/Year
Product Description

Technical Overview: Advanced Steel Structural System of Hotel

Customized Hotel Steel Structural System Weather Resistant 0

1. Structural System Design
The hotel employs a hybrid steel structure combining moment-resisting frames (MRFs) and braced steel frames to optimize lateral load resistance. Primary load-bearing elements utilize ASTM A992 high-strength steel (Fy = 50 ksi), with H-shaped columns (W14×132) and wide-flange beams (W18×40) designed per AISC 360-22 specifications. Secondary members integrate lightweight CFS (cold-formed steel) trusses for roof spans up to 18m, achieving a dead load reduction of 30% compared to conventional concrete systems.

2. Connection Technology

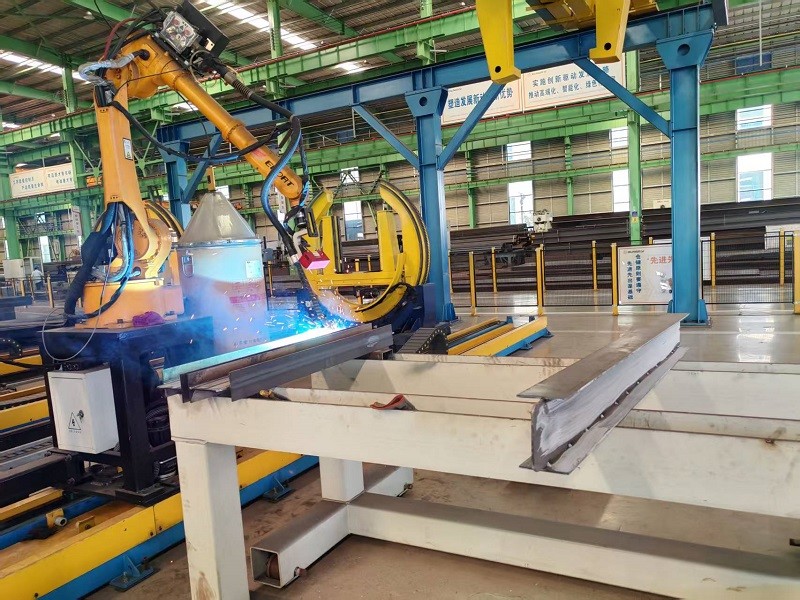

Critical joints feature slip-critical bolted connections (SCBL) with A325 bolts, ensuring seismic integrity in Zone 4 per ASCE 7-22. Prefabricated steel modules (accuracy: ±2mm) were assembled using robotic welding (AWS D1.8 compliant), reducing on-site labor by 40%. Diagonal eccentric braces (EBFs) with replaceable fuse elements enhance post-earthquake reparability.

3. Construction Innovation
The structure adopted a Design for Manufacture and Assembly (DfMA) approach:

  • BIM-driven steel detailing (Tekla Structures) enabled clash-free MEP integration within steel cavities.
  • Composite steel-deck floors (3mm profiled sheets + 150mm LC30/33 concrete) achieved fire resistance of R90 (EN 1994-1-2).
  • Galvanized steel cladding (G550 AZ150) with PVDF coating provides 25-year corrosion protection in coastal environments (C5-M class per ISO 12944).

4. Performance Metrics

  • Deflection control: L/360 for live loads (3.5 kPa), L/240 for total loads.
  • Modal analysis confirmed natural frequencies > 5Hz, eliminating human-induced vibration concerns.
  • Airborne sound insulation: Rw 55 dB for interfloor assemblies (tested per ISO 10140).

5. Sustainability Features

  • 92% structural steel recycled content (SRI-certified).
  • Embodied carbon: 28% lower than RC alternatives (calculated via ICE v3.0 database).
  • Modular disassembly design allows 85% material reuse post-demolition.

Certifications:‌ LEED Platinum (BD+C), ISO 14001 Environmental Management System.

Customized Hotel Steel Structural System Weather Resistant 1

Product name     Steel structure of hotel
Material     ASTM; EN; GB;
Surface     Painted; HDG



Customized Hotel Steel Structural System Weather Resistant 2



Customized Hotel Steel Structural System Weather Resistant 3

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume



Customized Hotel Steel Structural System Weather Resistant 4

Customized Hotel Steel Structural System Weather Resistant 5

Customized Hotel Steel Structural System Weather Resistant 6
