Dust Collecting Engineering Steel Structure Fabrication Cabinet Hopper Chimney Frame

20 TONS
MOQ
USD 1000-1200 PER TON
Price
Dust Collecting Engineering Steel Structure Fabrication Cabinet Hopper Chimney Frame
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q235B, Q355B,A36,S275
Standard: GB,EN1900,AISC,JIS,CWB
Surface Treatment: 1.Painting 2.Galvanized
Model: As Requested
Application: Iron And Steel Smelting And Ferroalloy Production Process
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Port: Qingdao, China (if Not Specified)
Package: GP Containers (40 Feet),Break Bulk
Highlight:

Dust Collecting Engineering Steel Structure

,

Chimney Frame Steel Structure Fabrication

,

Hopper Frame Steel Structure Fabrication

Basic Infomation
Place of Origin: CHINA
Brand Name: SUNWAY
Certification: CE,AISC,ISO,JIS,CWB
Model Number: Dust Collecting Steel Structure
Payment & Shipping Terms
Packaging Details: IRON FRAME 40GP CONTAINER
Delivery Time: 30DAYS
Payment Terms: T/T
Supply Ability: 10000 ton per month
Product Description

Dust Collecting Engineering Steel Structure Fabrication Cabinet Hopper Chimney Frame



Product Description

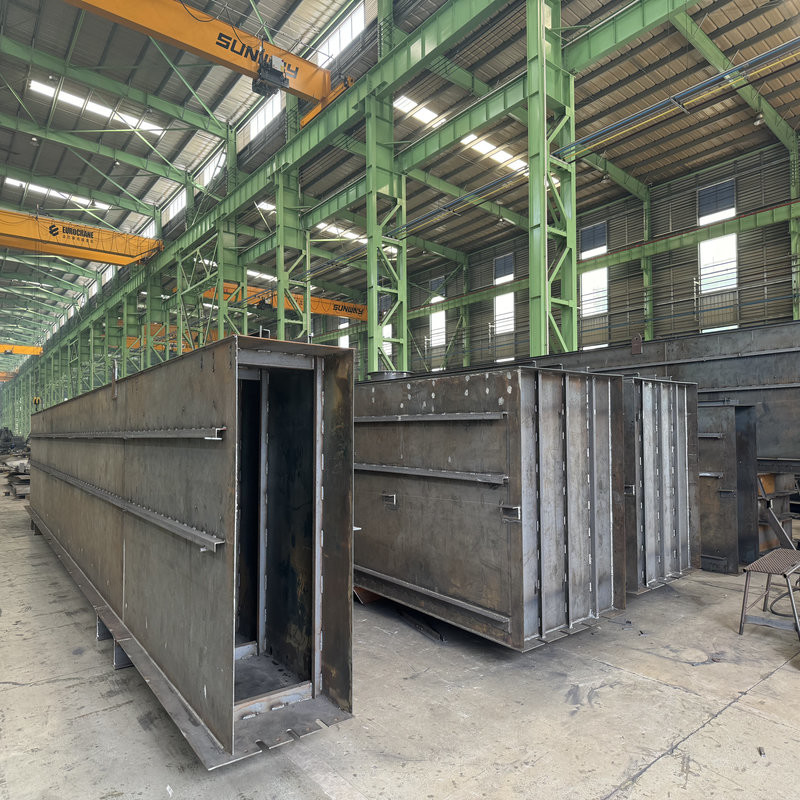

Cabinet: As the core of the bag filter, the cabinet is crafted through steel welding. Inside, it incorporates crucial elements such as hoppers, filter bags, and cage assemblies. The steel - made cabinet ensures high - strength and excellent corrosion resistance, guaranteeing long - term operation even in harsh environments.

Cage Assemblies: Cage assemblies serve as the supporting framework for filter bags. Constructed from steel, their shape and dimensions are precisely tailored to match the specific model and specifications of the bag filter. The steel material offers remarkable rigidity, effectively preventing filter bag collapse and maintaining stable filtering performance.

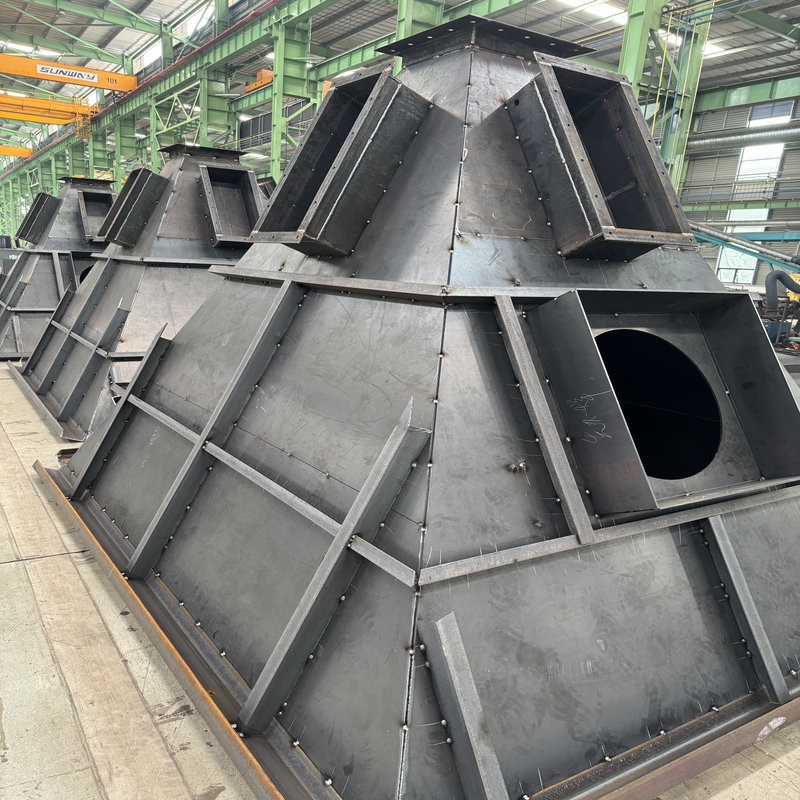

Hoppers: Hoppers are designed to collect dust and particulate matter filtered by the bags. Welded from steel, their shapes and sizes are customized according to different bag filter models. The steel hoppers feature good sealing performance, minimizing dust leakage and ensuring environmental protection.

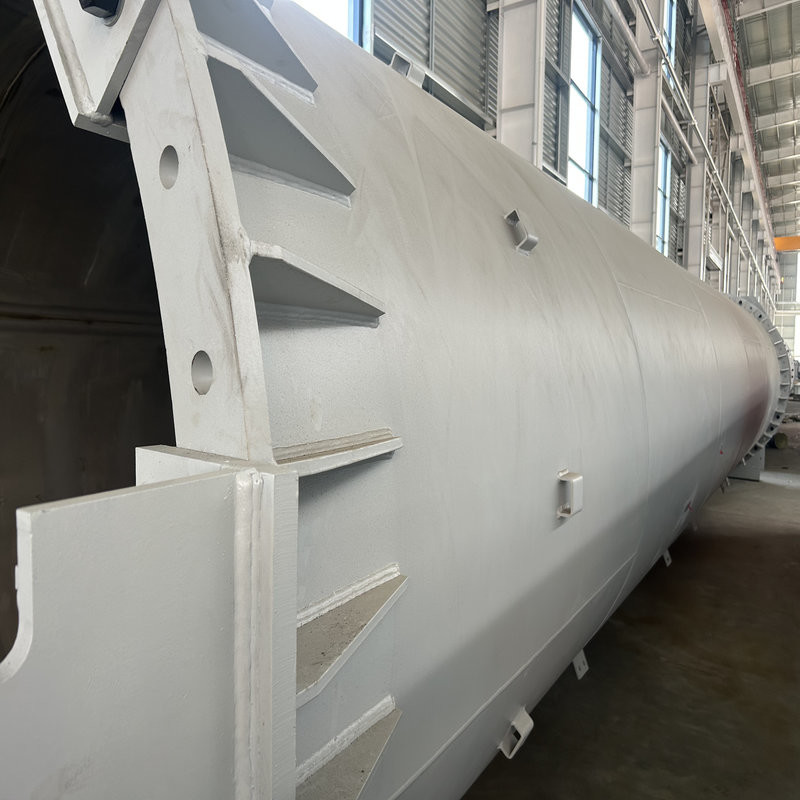

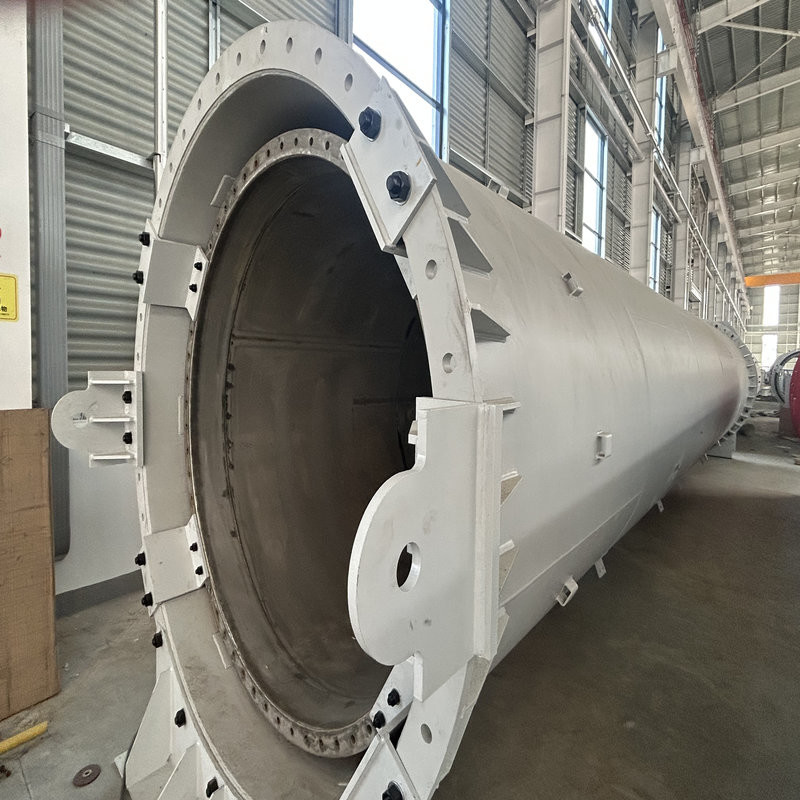

Chimney: The chimney serves as the outlet for flue gas emissions from the bag filter. Welded with steel, its shape and size are also determined by the bag filter's model and specifications. The steel chimney can withstand high - temperature flue gas, ensuring safe and stable exhaust.

The use of steel in the construction of these components endows our bag filters with exceptional durability, reliable performance, and adaptability to various industrial applications.



Specification

Products Dust collecting steel strucure
Main Material Q235B(ASTM A36,S235JR), Q355B
Main parts Cabinet, Hopper, Chimney, Frame assembly
Surface treatment Painting, Galvanized
Process-Cutting Laser cutting, plasma cutting, flame cutting for intricate shapes
Forming Rolling, and bending to meet complex structural designs
Welding MIG, TIG, Submerged arc
Machining Drilling, milling for precise fittings


Competitive advantage

Besides the Automatic Intelligent Production Line for H beam & Box Column, Sunway  is well equipped with PKG Synthetic cutting line, Laser Cutting Machine, Robot Welding Machine, Sawing Machine, Drilling Machine, Hydraulic Press Machine, Punching Machine, realize the scale and high-efficient production of factory intelligent manufacturing.

A customized MES system under developing, which combines TEKLA, Solidworks, and normal MES software to achieve centralized dynamic control of the entire process of order design, production, and erection,achieving full traceability of product component cycles.

SUNWAY introduce industry-leading 3D design software, which has powerful parametric design function and visual effect display. Through these software, designers can quickly build complex steel structure models, simulate structural performance under different working conditions, identify and solve potential problems in advance.



Application

We offer comprehensive processing services for engineering machinery equipment. Specializing in the production of parts for large - scale equipment we conduct precision machining on key components including transmission systems, lifting devices, structural frameworks, and hydraulic components. In addition, we provide customized solutions to meet the specific needs of projects, facilitating the successful progress of projects.



Dust Collecting Engineering Steel Structure Fabrication Cabinet Hopper Chimney Frame 0

Dust Collecting Engineering Steel Structure Fabrication Cabinet Hopper Chimney Frame 1





Dust Collecting Engineering Steel Structure Fabrication Cabinet Hopper Chimney Frame 2
