‌Steel Conveyor Support Structure: Heavy-Duty Framing for Bulk Material Handling

‌

Engineered to sustain continuous operation under extreme loads, our galvanized steel supports ensure precision alignment for belt conveyors in quarries, mines, and processing plants.

‌Core Specifications‌

• ‌Material‌: Hot-dip galvanized steel (Q355B/S355JR) with yield strength ≥355 MPa
• ‌Span Configuration‌: 5m-30m standard spans, adjustable for ground settlement ±15°
• ‌Load Capacity‌:
  • Vertical: ≤50 kN/m (CEMA C5 standard)
  • Lateral: Seismic Zone 4 compliant (IBC 2018)
• ‌Corrosion Protection‌: G90 galvanizing (610g/㎡) + optional epoxy topcoat for coastal/chemical environments

‌Critical Design Advantages‌

• ‌Dynamic Stability‌: Diagonal cross-bracing with energy-absorbing dampers reduces belt oscillation
• ‌Modular Assembly‌: Bolt-on connection system enables 70% faster installation vs. welded frames
• ‌Terrain Adaptability‌: Hydraulic height adjusters (±300mm) for uneven ground or inclined conveyors (0°-25°)
• ‌Maintenance Optimization‌: Replaceable wear liners at impact zones (ceramic/AR400 steel options)

‌Smart Monitoring Integration‌

• Vibration sensors pre-installed at bearing points
• RFID tags for structural health tracking (ISO 17357-2)
• IoT-ready brackets for strain gauge retrofitting

‌Typical Applications‌

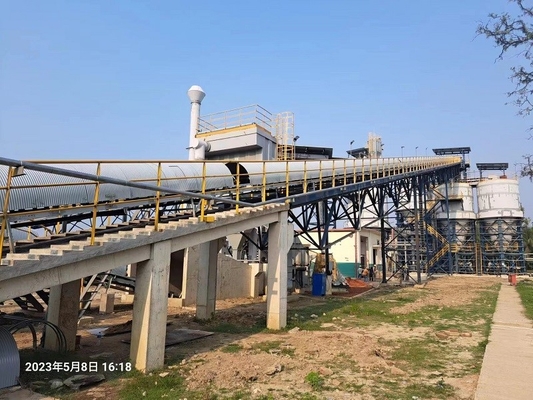

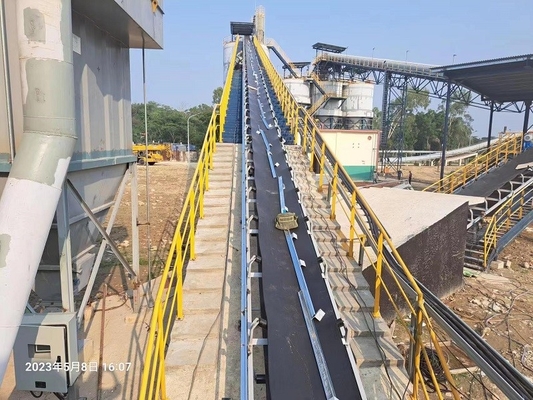

• Overland coal/iron ore conveyors (≤5000TPH)
• High-altitude stacking systems (-40°C to +55°C operation)
• Ship loading/unloading trestles with salt spray resistance

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

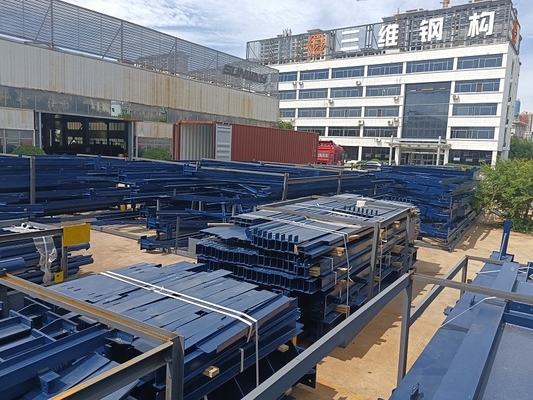

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume
