S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard

20 T
MOQ
USD1000/T-USD1200/T
Price
S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Weather Resistance: Yes
Cost: Affordable
Customization Options: Available
Raw Steel Material: Q235B, Q355B, ASTM A36, ASTM572
Application: Steel Structural Building
Color: Optional
Production Capacity: 12500T Per Month
Standard: AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance: Yes
Design: Customized
Durability: High
Surface Treatment: Painting Or Hot-dip Galvanized
Columns And Beam: H Section Column&Beam
Size: Customized
Customizable: Yes
Highlight:

Structural Steel Roof Truss Systems

,

S460 Steel Roof Truss Systems

,

AISC Steel Roof Truss Systems

Basic Infomation
Brand Name: SUNWAY
Payment & Shipping Terms
Packaging Details: Steel Pallet
Delivery Time: 30-40 days
Payment Terms: L/C,T/T
Supply Ability: 100000T/Year
Product Description

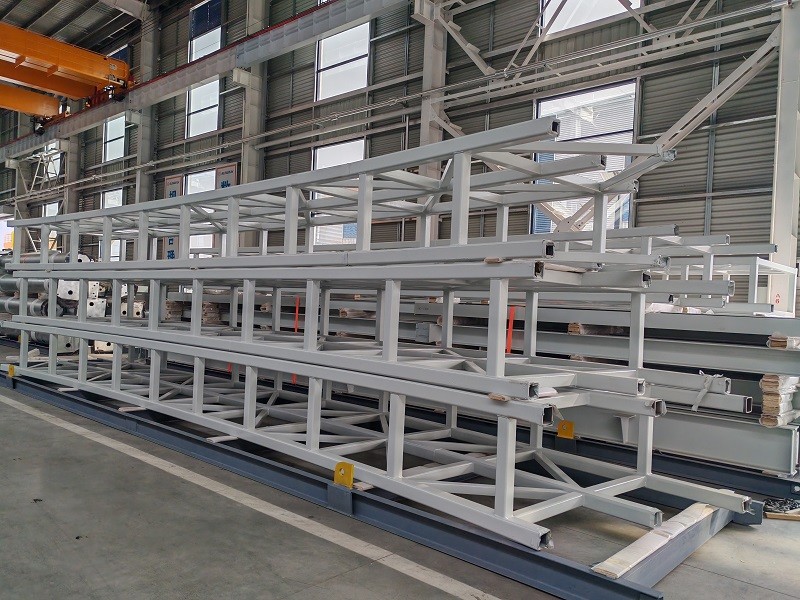

Structural Steel Roof Truss Systems

S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 0

  1. Optimized Long-Span Architectural Solutions

    Engineering Overview
    Steel roof trusses represent the pinnacle of efficiency in modern wide-span construction. Engineered for spans up to 150 meters, our systems utilize hollow structural sections (HSS) and high-strength friction-grip bolts (Grade 10.9) to achieve weight-to-span ratios 35% superior to conventional alternatives. All designs comply with AISC 360 and Eurocode 3 specifications, with optional seismic reinforcement meeting ASCE 7-16 requirements (R=6.5).

    Technical Superiority

    • Material Integrity‌: S355-S460 steel grades with Charpy V-notch impact tested at -20°C
    • Precision Fabrication‌: CNC-cut node plates (tolerance ±1mm) and robotic welding (AWS D1.1 Certified)
    • Corrosion Protection‌: Dual-stage surface treatment comprising hot-dip galvanizing (86μm per ISO 1461) and optional PVDF coating

    Performance Metrics

    • Load Capacity‌:
      • Dead Load: 0.5kN/m² (self-weight optimized)
      • Live Load: 1.2kN/m² (snow/wind combo)
      • Ultimate Wind Resistance: 75m/s (wind tunnel verified)
    • Deflection Control‌: L/400 maximum under full service load
    • Thermal Efficiency‌: 0.5% linear expansion coefficient (20-100°C)

    Design Flexibility
    Our parametric modeling capabilities support:

    1. Multiple truss configurations (Warren, Pratt, Fink, or custom geometry)
    2. Integrated service provisions for MEP systems and skylights
    3. Pre-engineered connection details for hybrid steel-concrete structures

    Quality Assurance

    • Third-party inspected dimensional reports
    • Material traceability per EN 10204 3.1 certification
    • As-built BIM models (Revit/LOD 350 & Tekla)

    Project Implementation

    • 98% prefabrication rate minimizes on-site labor
    • Bolt-up erection methodology (3-7 days typical)
    • Full lifecycle maintenance protocols available

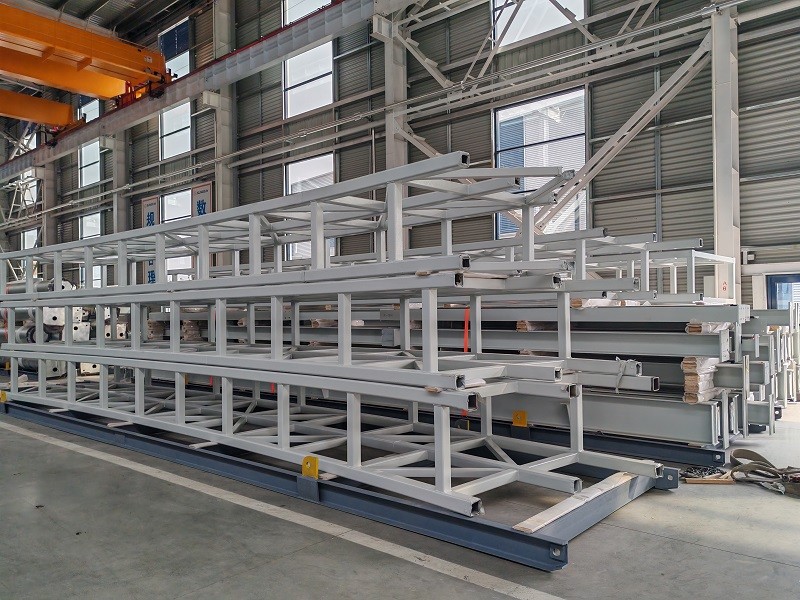

S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 1

Product name    Structural Steel Roof Truss Systems
Material     ASTM; EN; GB;
Surface     Painted

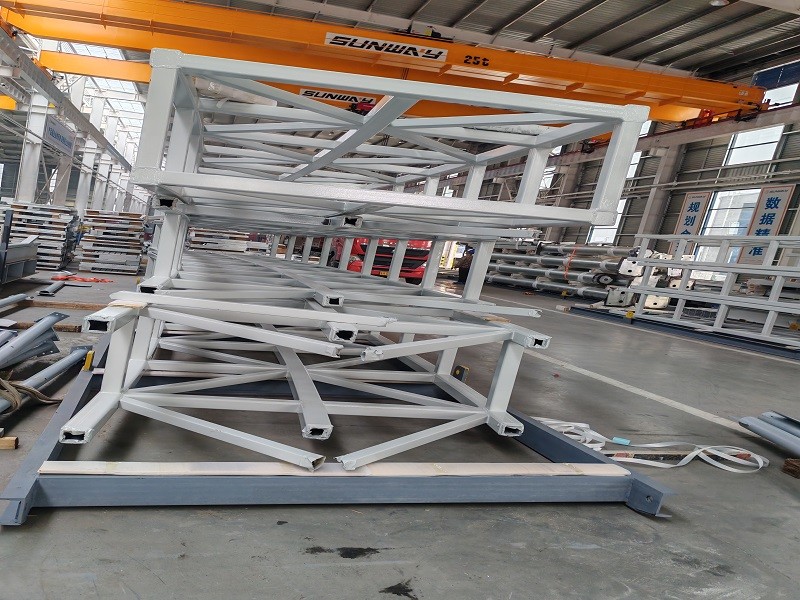

S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 2

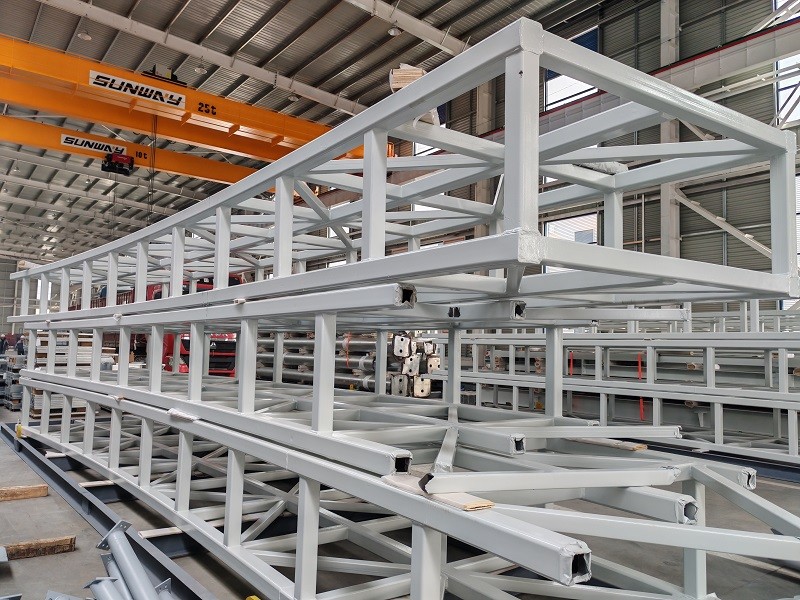

S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 3

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume



S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 4

S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 5

S355-S460 Structural Steel Roof Truss Systems AISC ASTM Standard 6
