Sustainable Prefab Steel Poultry Housing Solutions Hot Dip Galvanized

Sustainable Prefab Steel Poultry Housing Solutions

The prefabricated steel structure poultry house represents a cutting-edge innovation in agricultural construction. Engineered for sustainability and efficiency, this modular solution combines cost-effectiveness with rapid deployment, making it an increasingly preferred choice for modern livestock farming.

‌Core Components‌

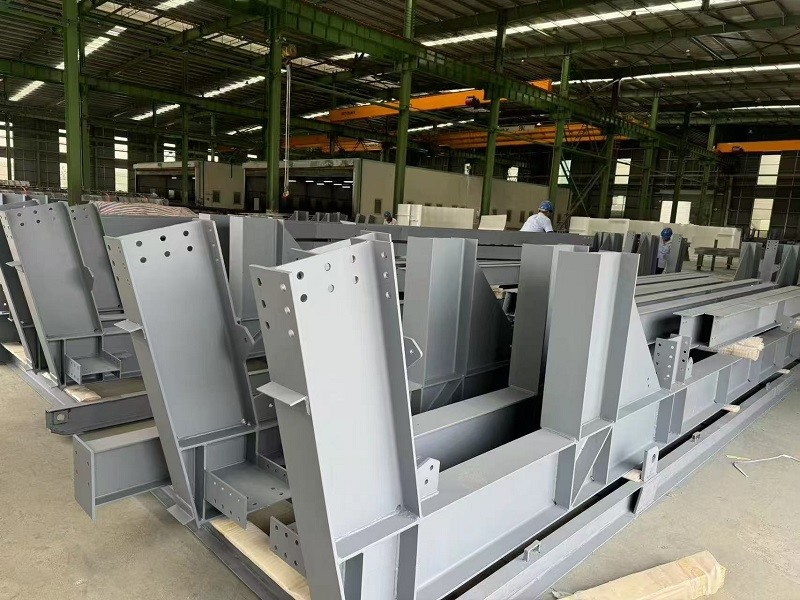

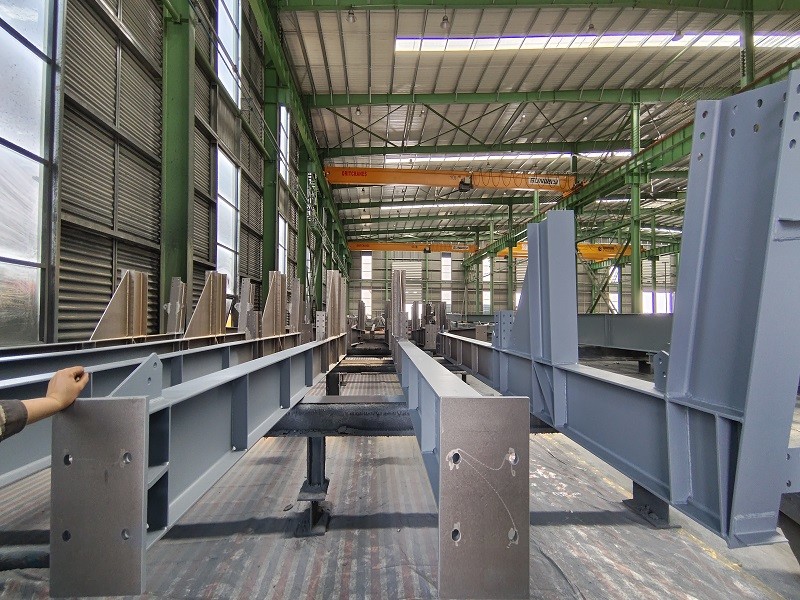

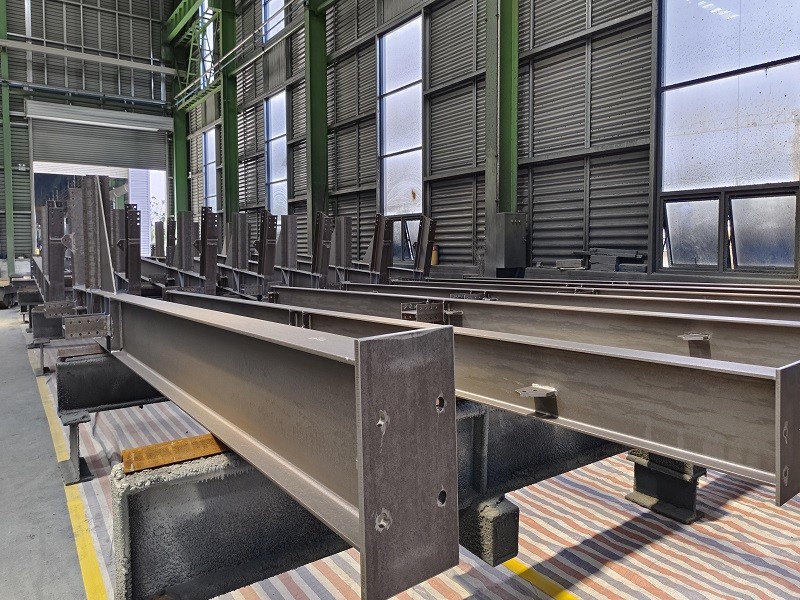

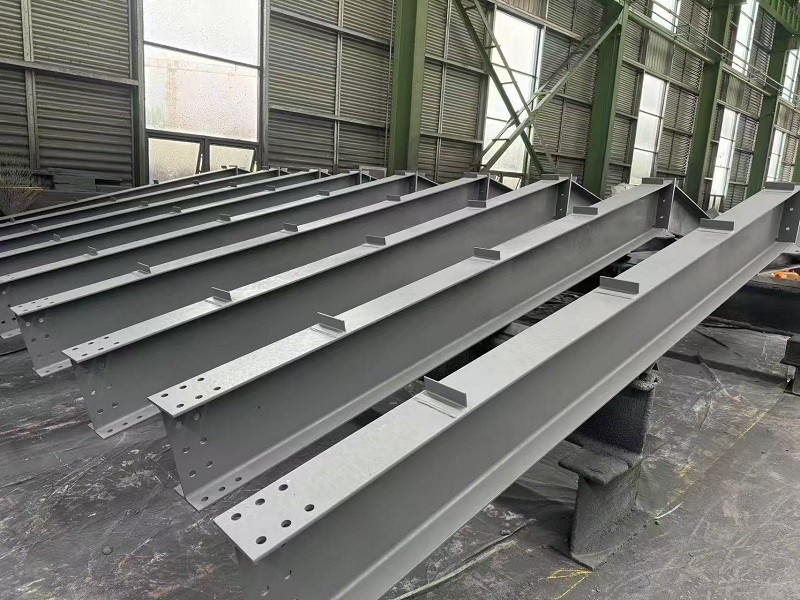

• ‌Primary Framework‌: H-section steel columns and beams, designed for structural integrity.
• ‌Secondary Elements‌: High-tensile steel purlins, corrosion-resistant roof/wall panels (optional insulated sandwich panels), and reinforced rolling doors/windows.
• ‌Advanced Fastening System‌: Main structural joints secured with Grade 8.8 high-strength bolts; purlins fixed using 4.8S bolts for accelerated assembly.

‌Installation Advantages‌

1. ‌Modular Precision‌: Factory-prefabricated components ensure dimensional accuracy (±2mm tolerance), enabling seamless on-site bolt-together installation within 15-30 days.
2. ‌Weight Optimization‌: Steel sheet/sandwich panel cladding reduces total weight by 40% vs traditional concrete structures, minimizing foundation requirements.

‌Product Features‌

‌Competitive Advantages‌
✅ ‌Cost Efficiency‌

• 25-30% lower construction costs per m² compared to conventional buildings
• 50% reduction in labor expenses through rapid assembly (typical 3,000m² facility completes in 20 days)

✅ ‌Quality Assurance‌

• ISO 9001-certified manufacturing with 3D BIM modeling and CNC precision cutting
• Comprehensive QC protocols: Ultrasonic weld testing, anti-corrosion coating thickness verification

✅ ‌Sustainable Design‌

• 85% recyclable material composition with LEED-compliant options
• Energy-saving configurations:
  ▶ Natural ventilation optimization
  ▶ Solar-ready roof structures
  ▶ Thermal insulation (U-value 0.35 W/m²K with 100mm sandwich panels)

✅ ‌Future-Proof Flexibility‌

• Column-free spans up to 30m for customizable layouts
• Expandable modular design allows capacity increases without structural demolition

‌Product Structure Types‌

‌1. Broiler Houses‌

• ‌Climate-Controlled Environments‌:
  • Automated ridge ventilation systems
  • Adjustable LED lighting schedules (0-100 lux)
  • Temperature-regulated zones (±1°C accuracy)
• ‌Enhanced Biosecurity‌:
  • Antimicrobial wall coatings
  • Negative pressure air filtration
  • Separate access zones for staff/equipment

‌2. Layer Hen Facilities

• Tiered nesting systems integrated with structural supports
• Egg collection conveyor compatibility
• Noise-reduction roof design (<45dB interior)

‌Certifications & Compliance‌

• Meets ISO 14064 carbon footprint standards
• Certified for wind load (60m/s) and snow load (1.5kN/m²)
• CE/ASTM/AISI material certifications

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume
