ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse

20 T
MOQ
USD1000/T-USD1200/T
Price
ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse
Features Gallery Product Description Request A Quote
Features
Specifications
Weather Resistance: Yes
Cost: Affordable
Customization Options: Available
Raw Steel Material: Q235B, Q355B, ASTM A36, ASTM572
Application: Steel Structural Building
Color: Optional
Production Capacity: 12500T Per Month
Standard: AISC, ASTM, EN, BS, DIN, GB, JIS
Fire Resistance: Yes
Design: Customized
Durability: High
Surface Treatment: Painting Or Hot-dip Galvanized
Columns And Beam: H Section Column&Beam
Size: Customized
Customizable: Yes
Highlight:

AISC Prefabricated Metal Building

,

Steel Structure PEB Warehouse

,

ASTM Prefabricated Metal Building

Basic Infomation
Brand Name: SUNWAY
Payment & Shipping Terms
Packaging Details: Steel Pallet
Delivery Time: 30-40 days
Payment Terms: L/C,T/T
Supply Ability: 100000T/Year
Product Description

Prefabricated Metal Building (PEB) Warehouse

ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 0

Structural Composition
As a fully engineered building system, PEB warehouses integrate these critical components:

  • Primary Framework‌: H-shaped steel columns (ASTM A992) and tapered beams with variable cross-sections
  • Secondary Members‌: C/Z purlins (G550 galvanized steel) spaced at 1.5m intervals
  • Bracing System‌: X-type rod bracing with turnbuckle tensioners (EN 1090-2 compliant)
  • Cladding Solutions‌: 0.5mm-0.7mm galvalume sheeting with optional 100mm rockwool insulation

Market Advantages

  1. Material Efficiency‌: 30-40% lighter than conventional steel structures (18-25kg/m²)
  2. Logistical Optimization‌: Modular components enable 40HC container shipping (max. 12m length)
  3. Accelerated Construction‌: 500-800m²/day erection rate with 60% shorter timelines vs traditional methods
  4. Lifecycle Cost‌: 15-20% lower total ownership cost over 30-year service period

Technical Service Scope
Our turnkey solution includes:

  • Precision Engineering‌: BIM-based structural analysis (STAAD Pro) with ±3mm fabrication tolerance
  • Customized Design‌: Clear-span configurations up to 60m without internal columns
  • Value Engineering‌: Material optimization through finite element analysis (FEA)
  • Documentation Package‌:
    • ISMF-compliant shop drawings (AISC 303-16 standard)
    • Bolt connection schedules (10.9 grade HSFG bolts)
    • Bill of Materials with mill certificates

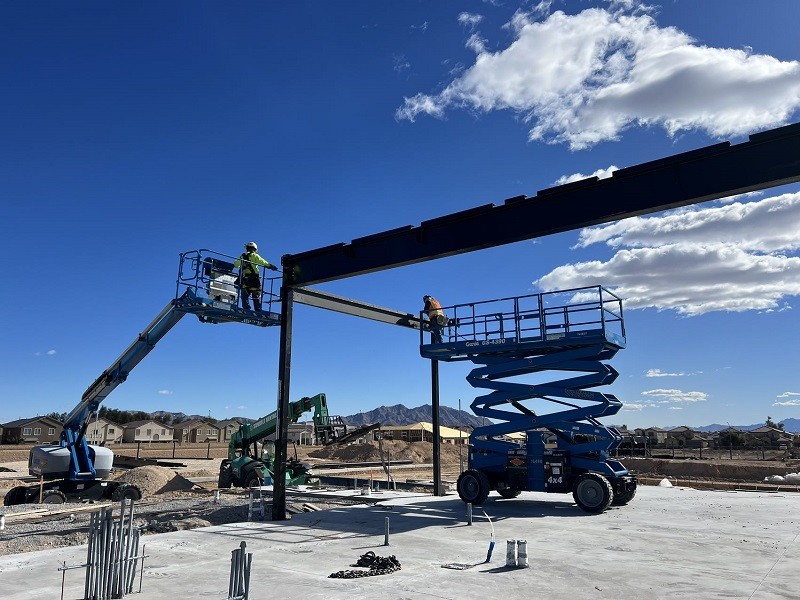

Construction Methodology

  1. Factory Prefab‌: CNC-cut members with pre-punched bolt holes
  2. Just-in-Time Delivery‌: Component labeling per erection sequence
  3. Mechanized Assembly‌: Power-driven impact wrenches for M16-M24 bolt tightening
  4. Quality Assurance‌: 3D laser scanning for alignment verification (ISO 9001 protocols)

ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 1

Product name     Steel Warehouse
Material     ASTM; GB;
Surface     Painted



ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 2



ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 3

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume



ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 4

ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 5

ASTM AISC Prefabricated Metal Building Steel Structure PEB Warehouse 6
